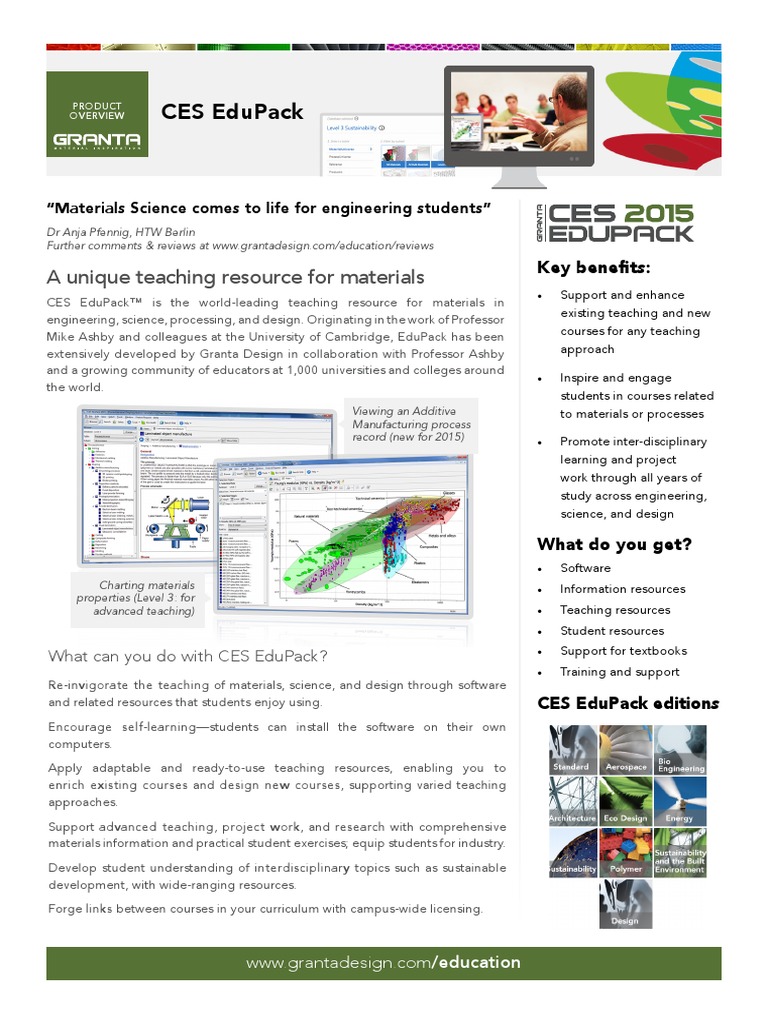

Ces Edupack 2017 Download CAMBRIDGE, UK, Feb 2, 2017 – Granta Design announced the release of the latest version of its leading materials education resource – CES EduPack 2017 – which is used at more than a thousand universities and colleges worldwide.

PowerPoint Presentation

Advance Material and Manufacturing TechnologiesByShobin John11/15/2015halmstad university, masters in mechanical engineering 2015. shojoh15@student.hh.se1

CASE1:Material Selection

MATERIAL WORLD

The material world serves a huge list of functions.The evolution was faster and the range of properties more varied.The birth of materials is dated back to the birth of the first invention , though it existed even beforeNew materials were invented with time and its applications variedFrom wheel to the ultra modern Nano-technology instruments material is vitalAshbys chart depicts the material invention and its usage over the years 11/15/2015halmstad university, masters in mechanical engineering 2015. shojoh15@student.hh.se2

CLASSIFICATION OF MATERIAL WORLDClassifying materials is vital for the ease of identification in practical applicationsPeriodic table was one great invention but not good enough as it does not include the whole list of engineering materials Ashbys classification of materials can overcome this drawback and is as depicted in the picture

11/15/2015halmstad university, masters in mechanical engineering 2015. shojoh15@student.hh.se3

/cod4-easy-account-17.html. SELECTION OF MATERIALSThe task of material selection can be simplified by its ordered classification into kingdom, family, class, subclass, member and attributes (Ashbys selection method)This can be used to arrive at a point specific from a diverse wideAn example is as depicted in the diagram

11/15/2015halmstad university, masters in mechanical engineering 2015. shojoh15@student.hh.se4

SELECTION TECHNIQUE and its structureThe myriad number of materials and its diverse properties, makes material selection process peccableCES EduPack is a software to overcome this dilemmaIt helps to identify the apt material from the material classification world. The structure of the software is as shown in the second figure

11/15/2015halmstad university, masters in mechanical engineering 2015. shojoh15@student.hh.se5
